10 Critical Reasons Why You Need a Below-Slab Vapour Barrier
Here are 10 critical reasons why you should always use a high-performance vapour barrier, no matter the project.
Written by
Dan Marks
Here are 10 critical reasons why you should always use a high-performance vapour barrier, no matter the project.
Despite its cost being measured in mere cents per square foot, project designers, contractors, and building owners often disregard a high-performance under-slab vapour barrier. Yet, failing to use this vital material may be the best illustration in the construction industry of “a penny wise and a pound foolish” – unnecessarily risking costly consequences and potentially years of legal squabbling over liability.
Here are 10 critical reasons why you should always use a high-performance vapour barrier, no matter the project:
The single most important reason you should use a high-performance vapour barrier is to protect the expensive floor covering in your building.
Water-based adhesives used to secure your floor covering are highly susceptible to the presence of liquid water and the alkaline salts it pulls into solution from the concrete slab. This creates a high-pH environment. Liquid water below the slab can diffuse through the slab as vapour, then condense under the flooring, which can emulsify some adhesive and destroy the floor covering. Water vapour diffusing through the concrete slab can also lead to deformation and discoloration of the floor covering material, leading to costly repairs or even replacement.
The concrete foundation of your building may feel rock-solid. Concrete, however, is, in fact, a porous material. Water vapor will always move from a high relative humidity environment below the building into an area of low relative humidity – even through concrete. That’s why nearly every expert in the concrete industry recommends a below-slab vapour barrier to stop the vapour drive of water upward and into your building envelope.
The group of industry experts at the American Concrete Institute committed this to their guide, ACI 302.2R in 2006. Moreover, most building codes have also codified the practice of installing at least minimal vapour protection below concrete slabs on grade and in most crawl spaces.
By opting to save relative pennies in material costs, some project designers, contractors, and building owners are electing to ignore industry best practices. In doing so, they’re exposing themselves to liability concerns that could come in the event of a floor failure or other problem with the building that arises from the migration of water vapour or other soil gases that could have been prevented by a vapour barrier.
What’s that smell inside your relatively new building? It might just be the smell of ignoring the need for below-slab protection. Water is critical to mould growth in any environment; but while you might be quick to clean up after a spill to avoid mould growth, there is no cost-effective way to protect your building from the moisture that will enter your building from below if you failed to install a high-performance vapour barrier below your concrete foundation.
Moisture, however, may be the least of the problems passing through the concrete foundation that can negatively affect the air quality inside your building. Radon, for example, is the second leading cause of lung cancer in the United States, and the leading cause among non-smokers. A below-slab vapour barrier can also help prevent sub-slab radon ingress. Many vapour barriers are synonymous with soil-gas retarders in construction language. When evaluating the performance qualities of vapour barriers as soil-gas retarders, be sure to check the radon diffusion coefficient of the material before you select it. While there are many factors to consider, a general rule of thumb is: the lower the radon diffusion coefficient, the better.
Finally, the same adhesives that can be affected by liquid water and high-pH environments (destroying your floor covering) can also create issues with indoor air quality. A floor covering failure due to ignoring below-slab protection may be the insult, but the health impacts of the poor air quality from broken-down adhesives could lead to real injury of your inhabitants.
Save the materials and equipment that are placed on top of exposed concrete. The peril of ignoring below-slab vapour protection in your building does not begin and end with the floor covering and its inhabitants. One of the classic mistakes builders make in storage facilities and warehouses is the impact moisture vapour can have on expensive inventory that must be replaced if damaged.
The penny-wise and pound-foolish rationale for a warehouse goes like this: it’s just an exposed slab. There’s no floor covering. There are few inhabitants and plenty of air circulation. What does some extra moisture vapour really matter? Why not save money and skip using a vapour barrier?
Here’s the problem with that logic: the moment you start putting materials down on the exposed concrete, those items become vapour barriers. Moisture will have a harder time moving through product inventory and its packaging and will instead begin condensing and pooling on the floor below, in the right (or wrong) conditions. That accumulation of water can destroy sensitive products. Chances are – replacing them will be much more expensive than installing that high-performance vapour barrier in the first place.
Don't forget about potential warehouse transformations in the future. Take the same foolhardy logic of the builder who removes below-slab vapour protection from the design of their warehouse or storage facility project and take it another step: what happens when the building needs to be reconfigured for another use?
Without a high-performance vapour barrier, installing a floor covering may be impossible (or violate its warranty – more on that later).
Protecting your foundation before concrete placement increases the adaptability of a facility for future use. This can increase the flexibility and desirability of a site for a potential buyer with designs on converting the facility for a different purpose.
One of the critical ways many HVAC systems work in buildings is by removing moisture from the air and reducing the relative humidity of the building envelope. By forgoing the installation of a below-slab vapour barrier, you ensure a greater amount of moisture entering the building from underneath your building’s foundation.
Even without humidity controlling systems, this can mean more work for your HVAC system. The more your HVAC system is working, the more money you are paying in electricity costs. That’s one reason why most green building codes and best practices include a high-performance vapour barrier in their specifications. A more energy-efficient building is better for the environment and your bottom line.
In some instances, not only is a below-slab vapour barrier strongly recommended, it can be required. Choosing to ignore the fine print of your floor covering warranty could drastically impact the effectiveness of your installation. Save yourself the headache associated with repairs and unwanted costs by reading the fine print of your warranty before starting your building project.
It’s every bit as bad as it sounds: Alkali Silica Reaction (ASR) is commonly referred to as “concrete cancer.” In ASR, the common salts found in cement (alkali) react with certain forms of reactive, amorphous silica found in some types of aggregates to form a gel. Once the mature slab’s internal relative humidity reaches 80% or greater, the gel expands; the result can be destructive enough to close joints and cause irreparable cracking to your slab.
The only easily controllable variable in the concrete cancer equation is the moisture. If you’re using Portland cement concrete, you will have alkaline salts in the slab. Depending on your geographic location, you may also not be able to eliminate the amount of reactive silica in your aggregates. But you can control the amount of water entering your slab by using a high-performance vapour barrier. Call it cancer prevention for your concrete.
Sweating Slab Syndrome may not sound as dire as “Concrete Cancer,” but the results can be a big headache for building managers and a major liability concern for owners.
It happens like this: liquid water on a slab can naturally pull salts to the surface of a slab and deposit them there as the water evaporates in a process known as efflorescence. Those are the white, flowery blemishes you often see in concrete. Many of those salts are hygroscopic, which means they absorb moisture from the atmosphere. This moisture deposits on the surface of the slab and causes damp and slippery conditions.
A mop or a “wet floor” placard may be a temporary solution – but the saltiness (the efflorescence) doesn’t evaporate with the water. The next time humid air hits the slab in your facility, the slab will “sweat” again, and the slip and fall hazard returns. Keep that mop or placard handy.
A high-performance vapour barrier, once again, can eliminate one of the variables which leads to the condition in the first place. By reducing the moisture gradient and diffusion in your slab, you can virtually eliminate efflorescence caused by under-slab water vapour migration. That’s protection no amount of antiperspirant can provide your building.
This might be the biggest misconception when it comes to vapour barriers: their permeability to moisture does not allow a newly-placed slab to dry evenly out of the bottom of the slab, as it does from the top. This disproportionate drying may lead to minor, short-term curling in the hours and days it takes for a slab to dry. However, the far greater risk to a slab is long-term curling over the lifetime of the concrete foundation, which a high-performance vapour barrier helps prevent.
Without a vapour barrier, moisture would continually wet the bottom of the slab, as vapor will continuously drive from the high humidity below slab to the relatively low humidity above the slab. Without a vapour barrier in place, a slab that dries from its top surface will be exposed to disproportionate moisture levels in the slab for its entire lifetime. This is a far greater curling threat to the foundation, long-term.
The penny-wise and pound-foolish may think forgoing the installation of a vapor barrier can save them time and money. But in the long run, the pennies-on-the-dollar that a high-performance vapour barrier costs can provide the concrete placement team plenty of savings of both time and money.

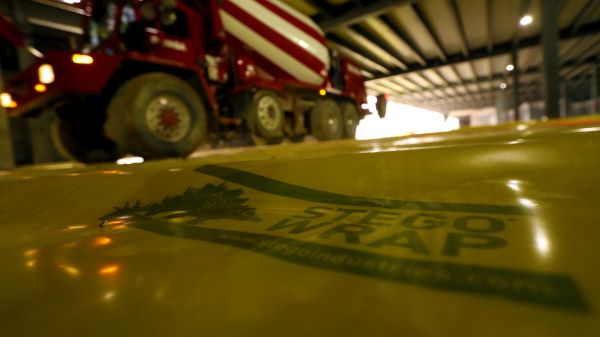

First, a vapour barrier provides a consistent, smooth surface for concrete placement teams. This can be a time-saver where the placement team has a predictable surface on the site throughout.
Furthermore, placing concrete directly on the vapor barrier’s consistent surface can make finishing of the slab more even. This will provide the placement team better results and happier customers.
You only have one chance to make the right decision for your below-slab vapor protection: before the concrete is placed. Choosing to install a high-performance vapour barrier in your design will save you from headaches and more expense in the future.
