FERRULES
Double-ended and X-Foot ferrules are manufactured and tested to comply with AS3850 in conjunction with the tension bar. M12 to M20 threaded ferrules are a nominal 28.0mm OD with the M24 threaded ferrule having a 32mm outside diameter. The nominal 15mm diameter clearance hole is provided for the N12 tension bar.
X CHAIR
The X-Chair is an easy-to-use ferrule chair, developed to locate ‘near face’ ferrules in precast and tilt-up panels. The uniquely designed X-Chair accommodates all standard X-Foot and and round 96mm high ferrules. The X-Chair will cater to most third party round ferrules. The design has an in-built cross support and integral centre spigot to accurately position the ferrule to shop drawing locations.
PLATES AND CAPS
Ferrule Cap - Fit into ferrule to stop concrete entering the ferrules. The antennae assist in locating the position of the ferrule in the cast panel.

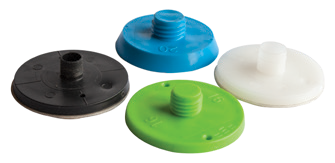

Nailing Plates - Assist with accurately locating the ferrules for structural steel on the far face or edge of panel.
